AEGIS One-Step Deconvolution Workflow

1) What one-step deconvolution means in AEGIS

AEGIS supports three method support modes: - run_and_import_r: runnable directly in R - run_and_import_python: runnable through Python (optional) - import_only: import exported outputs only

Use the registry first:

registry <- get_supported_methods()
knitr::kable(registry)

method_name	support_mode	can_run_in_r	can_run_in_python	requires_reference	requires_spatial_coords	expected_output_type	adapter_reader	reader_function	runner_function	dependency_type	backend_dependency	notes
RCTD	run_and_import_r	TRUE	FALSE	TRUE	TRUE	proportion	read_rctd	read_rctd	run_rctd	r_package	spacexr	R-native runner; prefers spacexr pipeline when available.
SPOTlight	run_and_import_r	TRUE	FALSE	TRUE	TRUE	proportion	read_spotlight	read_spotlight	run_spotlight	r_package	SPOTlight	R-native runner; requires SPOTlight package and suitable reference inputs.
cell2location	run_and_import_python	FALSE	TRUE	TRUE	TRUE	abundance	read_cell2location	read_cell2location	run_cell2location	python_module	cell2location,scvi	Python via reticulate; if unavailable, import exported tables with read_cell2location().
CARD	run_and_import_r	TRUE	FALSE	TRUE	TRUE	proportion	read_card	read_card	run_card	r_package	CARD	R-native runner; requires CARD package and suitable reference inputs.
SpatialDWLS	import_only	FALSE	FALSE	FALSE	FALSE	proportion	read_spatialdwls	read_spatialdwls	NA	import_only	NA	Import-only in P9. Use read_spatialdwls().
stereoscope	run_and_import_python	FALSE	TRUE	TRUE	TRUE	proportion	read_stereoscope	read_stereoscope	run_stereoscope	python_module	scvi	Python via reticulate (experimental wrapper).
DestVI	run_and_import_python	FALSE	TRUE	TRUE	TRUE	abundance	read_destvi	read_destvi	run_destvi	python_module	scvi	Python via reticulate (experimental wrapper).
Tangram	run_and_import_python	FALSE	TRUE	TRUE	TRUE	mapping	read_tangram	read_tangram	run_tangram	python_module	tangram	Python via reticulate (experimental wrapper).
STdeconvolve	import_only	FALSE	FALSE	FALSE	FALSE	latent	read_stdeconvolve	read_stdeconvolve	NA	import_only	NA	Import-only in P9. Use read_stdeconvolve().
DSTG	import_only	FALSE	FALSE	FALSE	FALSE	proportion	read_dstg	read_dstg	NA	import_only	NA	Import-only in P9. Use read_dstg().
STRIDE	import_only	FALSE	FALSE	FALSE	FALSE	proportion	read_stride	read_stride	NA	import_only	NA	Import-only in P9. Use read_stride().

2) Load spatial data and markers

data("aegis_example", package = "AEGIS")
seu <- aegis_example
markers <- readRDS(system.file("extdata", "marker_list.rds", package = "AEGIS"))

3) Prepare a reference object

In practice this should be your real single-cell reference object.

reference <- matrix(
  c(4, 2, 1, 2, 5, 2, 1, 2, 6),
  nrow = 3,
  byrow = TRUE
)
rownames(reference) <- c("B_cell", "T_cell", "Myeloid")
colnames(reference) <- c("g1", "g2", "g3")

4) Run one method (direct execution)

res_one <- run_deconvolution(
  seu = seu,
  reference = reference,
  methods = "SPOTlight",
  strict = TRUE
)

obj_one <- run_aegis(res_one$seu, deconv = res_one$deconv, markers = markers)

5) Run multiple methods in one step

res_multi <- run_deconvolution(
  seu = seu,
  reference = reference,
  methods = c("SPOTlight", "CARD", "RCTD"),
  strict = FALSE
)

obj_multi <- run_aegis(res_multi$seu, deconv = res_multi$deconv, markers = markers)

6) Full one-step wrapper

obj_full <- run_aegis_full(
  seu = seu,
  reference = reference,
  methods = c("SPOTlight", "CARD", "RCTD"),
  markers = markers,
  strict = FALSE
)

7) Optional Python-backed methods

Python-backed methods are optional. If Python modules are missing: - strict mode: clear error - non-strict mode: method is skipped with a message

res_py <- run_deconvolution(
  seu = seu,
  reference = reference,
  methods = c("cell2location", "DestVI", "Tangram"),
  use_python = TRUE,
  strict = FALSE
)

8) Downstream AEGIS analysis and visualization

For a fully reproducible vignette run (without backend dependencies), this chunk uses simulated deconvolution and then runs the same downstream pipeline.

demo_methods <- registry$method_name
deconv_demo <- simulate_deconv_results(
  seu,
  methods = demo_methods,
  cell_types = c("B_cell", "T_cell", "Myeloid"),
  seed = 909
)
#> Loading required namespace: SeuratObject

obj <- run_aegis(seu, deconv = deconv_demo, markers = markers)
obj <- score_methods(obj)
obj <- rank_methods(obj, method = "mean_rank")
obj <- compute_consensus(obj, strategy = "weighted", top_n = min(4, length(demo_methods)))

obj$consensus$result$methods_used
#> [1] "STdeconvolve" "SpatialDWLS"  "DestVI"       "SPOTlight"

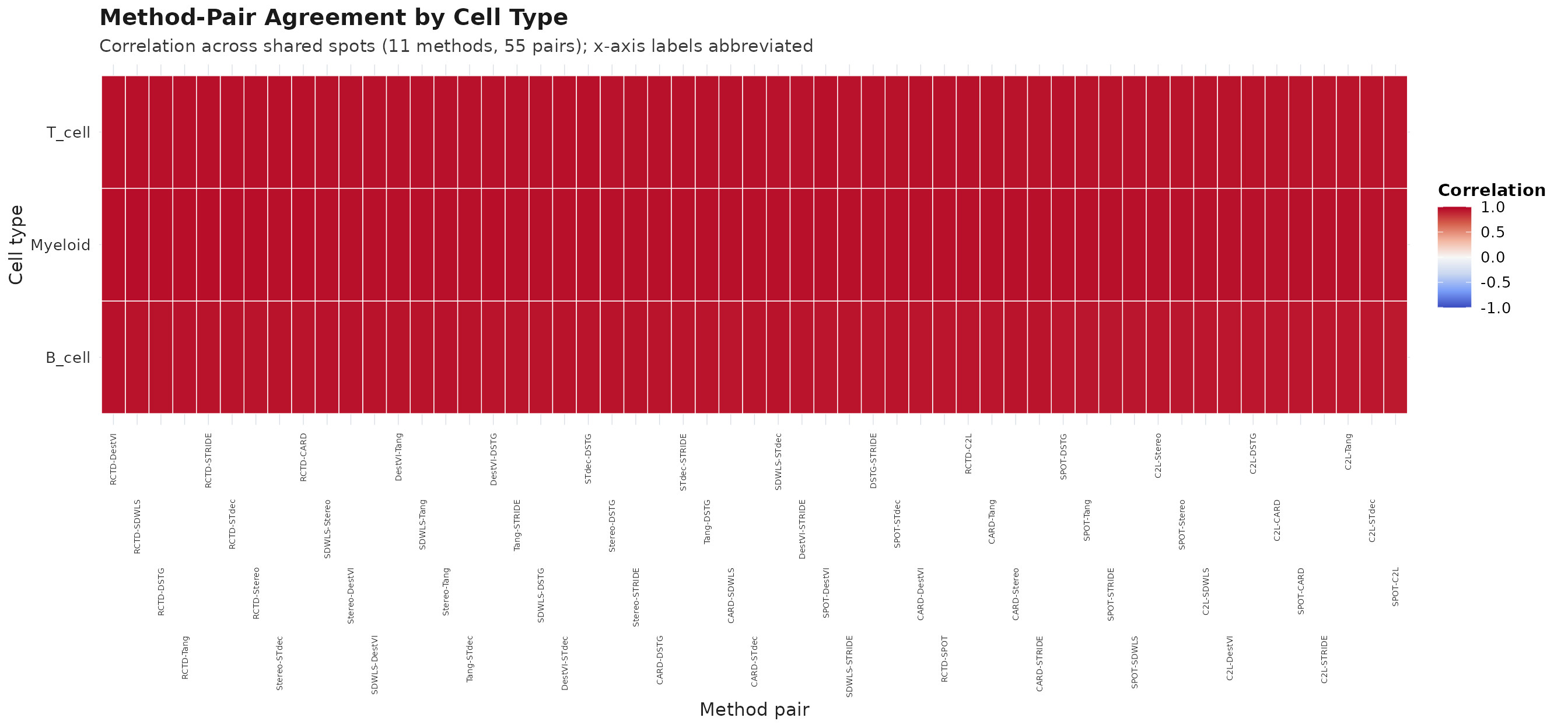

plot_compare(obj, type = "heatmap")

plot_compare(obj, type = "consensus_map")

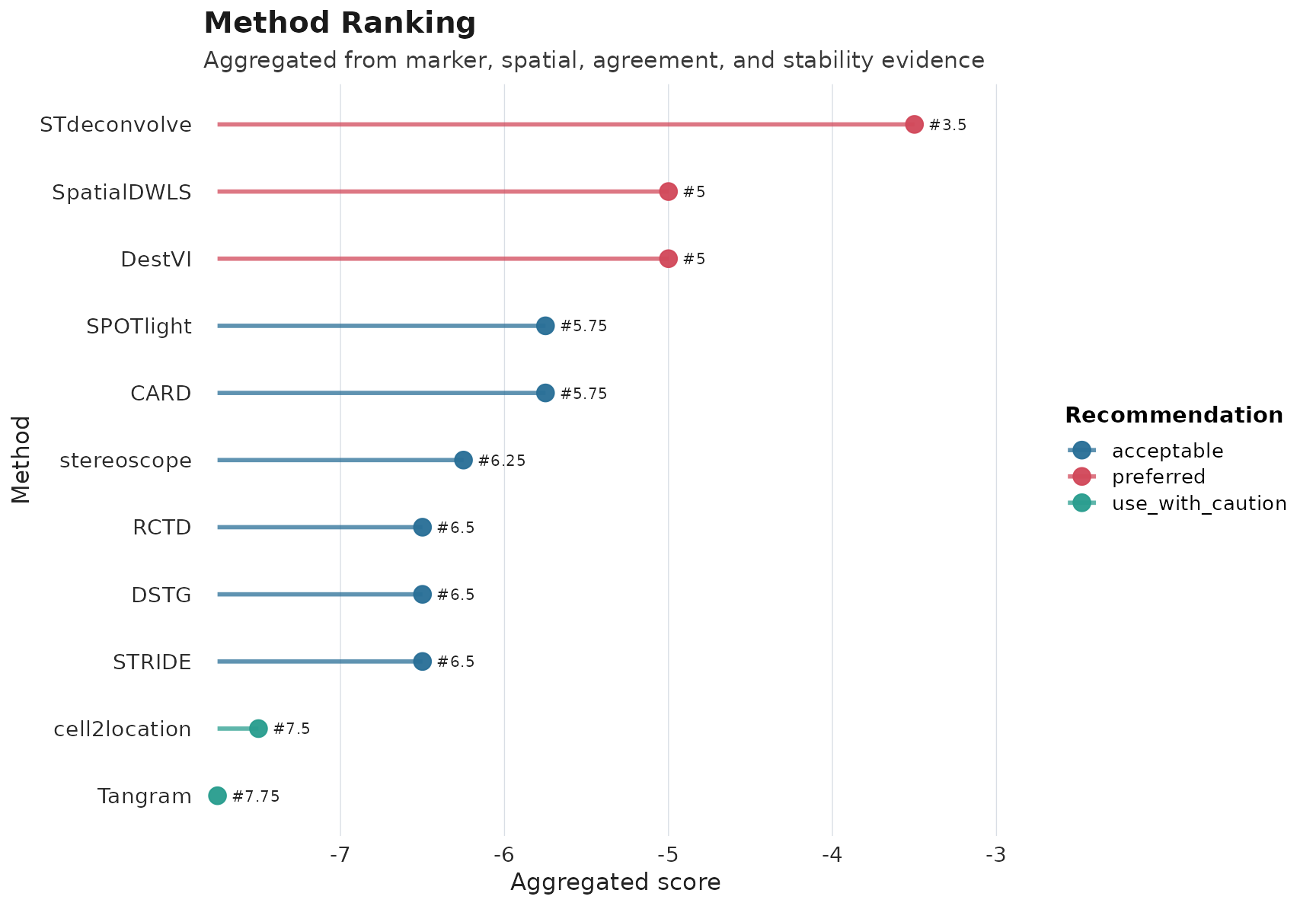

plot_compare(obj, type = "ranking")

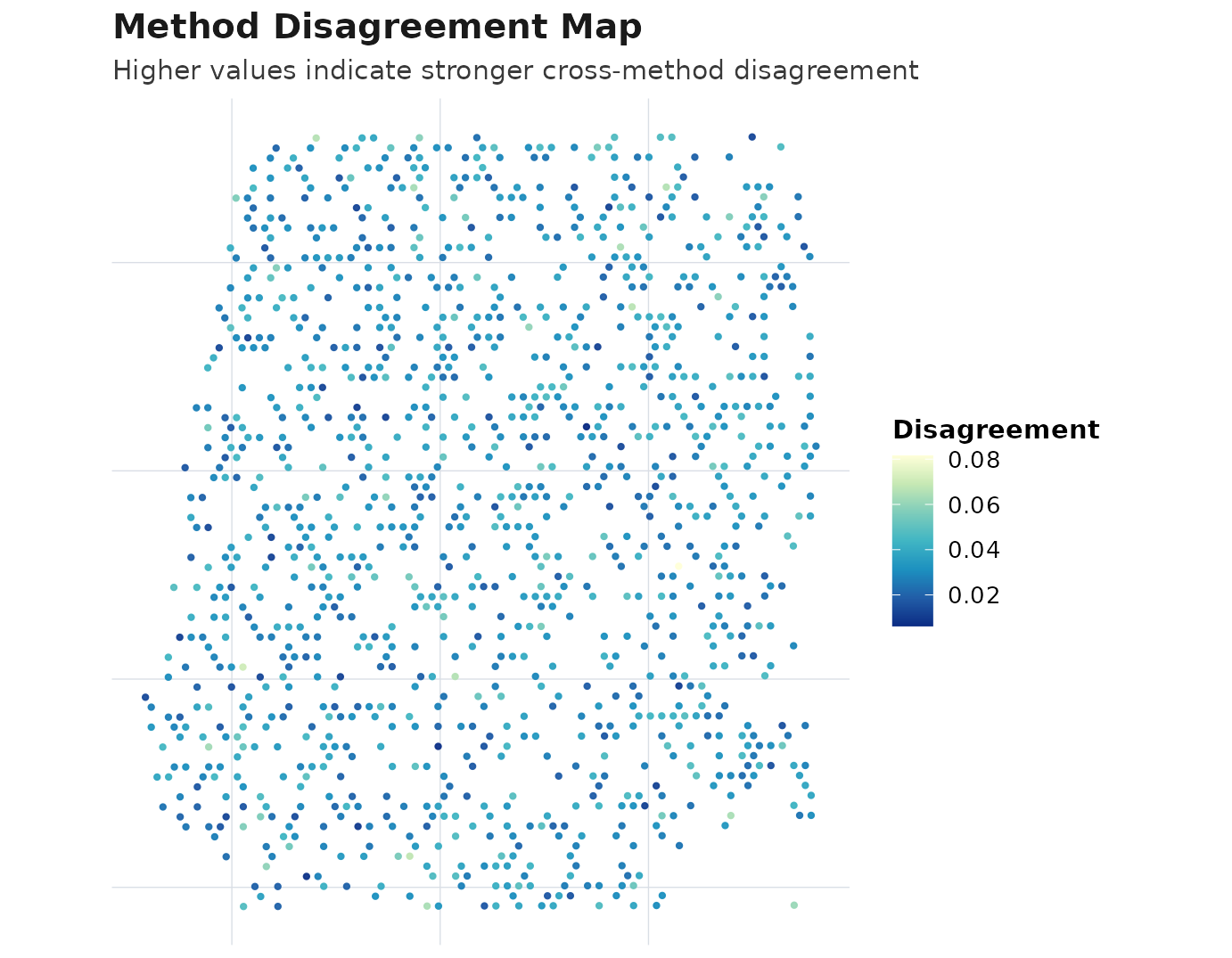

plot_compare(obj, type = "disagreement_map")

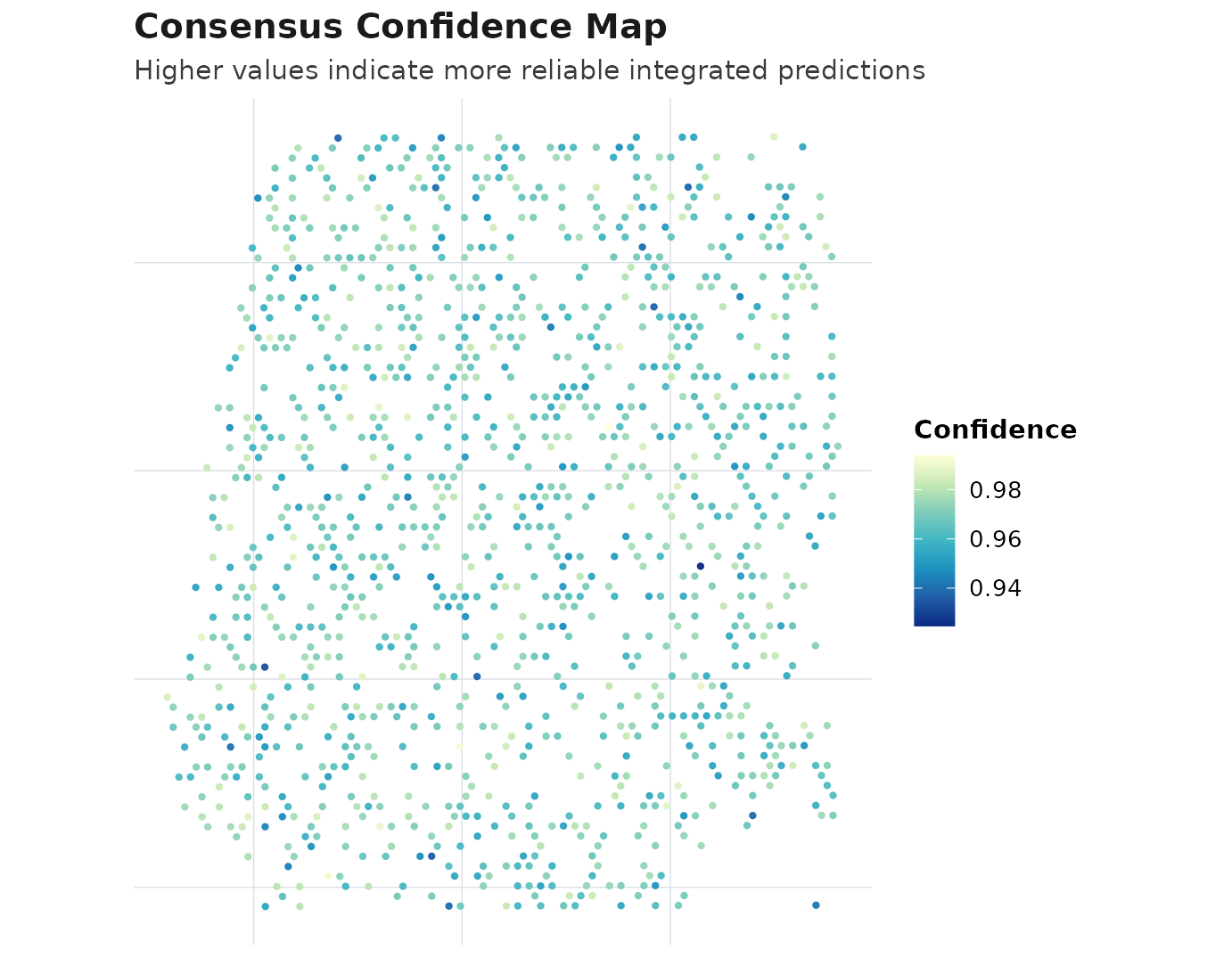

plot_compare(obj, type = "confidence_map")

9) Practical notes

1. Use direct execution when method dependencies and inputs are ready.
2. Use importer functions (read_*) when methods are not executable in your environment.
3. Treat Python-backed methods as optional unless you manage a validated Python environment.
4. Use plot_compare(type = "ranking") as the primary ranking view and render_report() for the final output.
5. Use run_aegis_full() when you want the one-step execution wrapper plus downstream AEGIS analysis.
